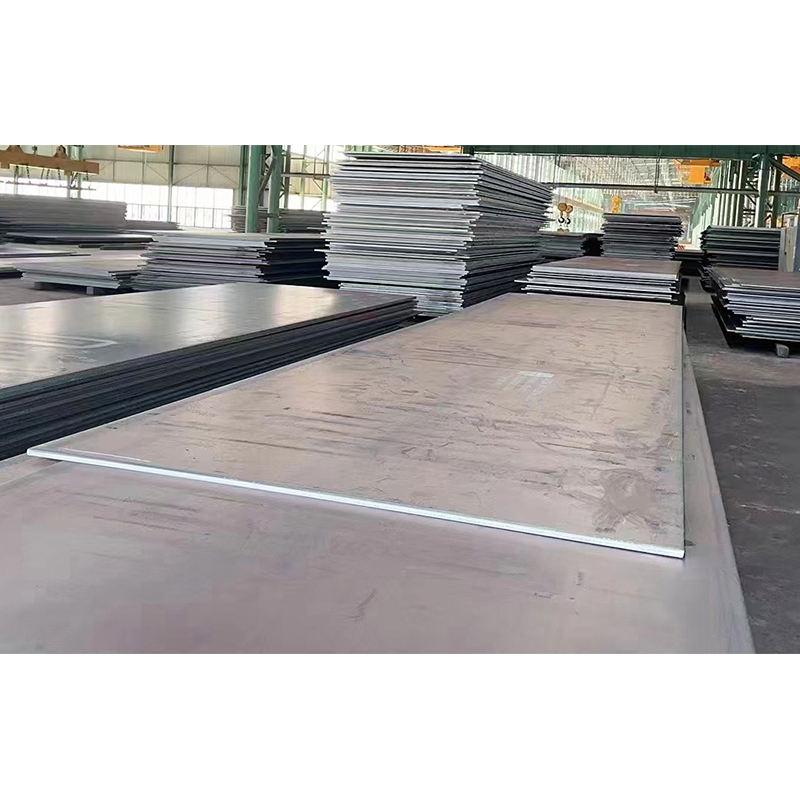

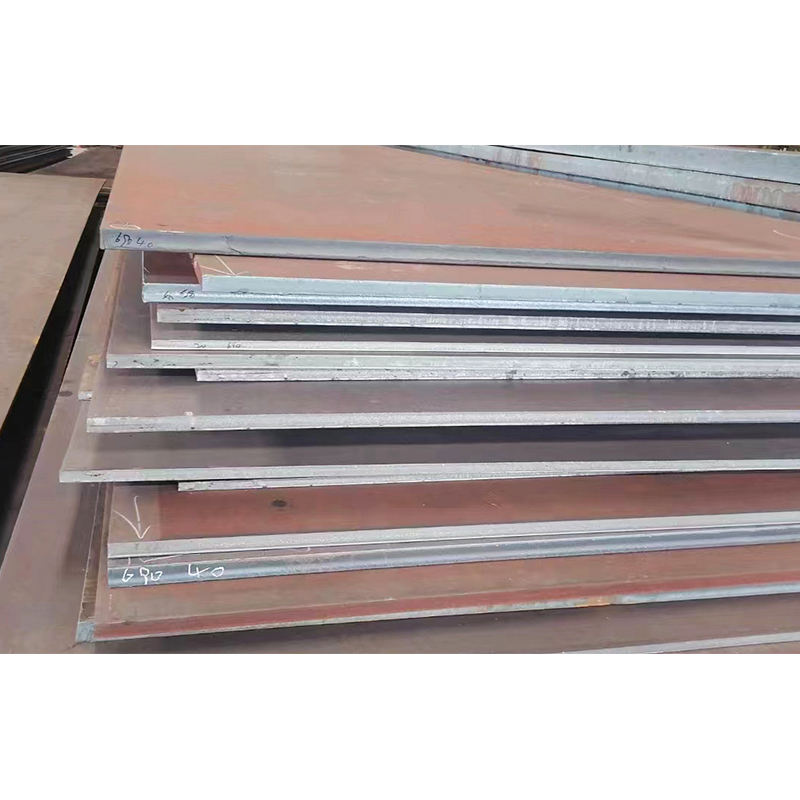

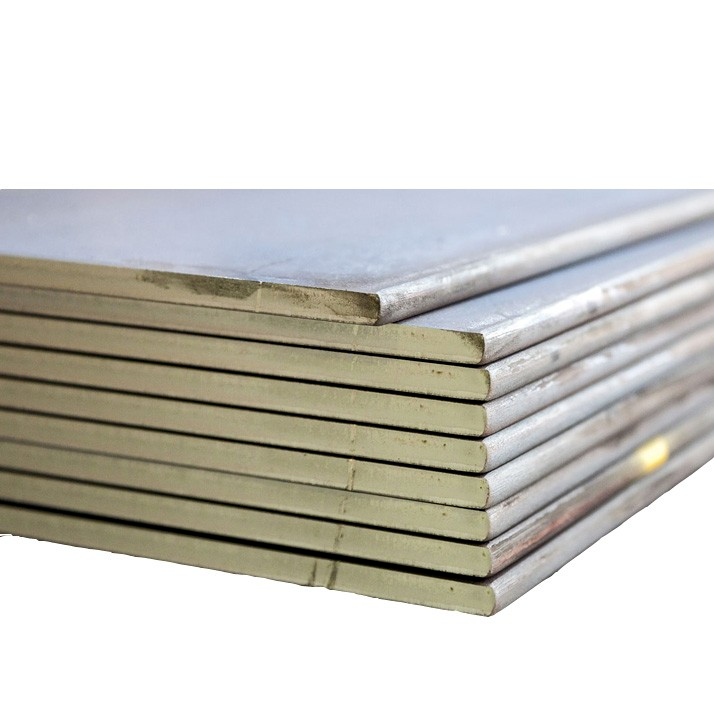

NM400 Wear-resistant Steel

NM400 wear-resistant steel plate is a high-strength, wear-resistant material.

Chemical Composition

Main Elements: Carbon (C) ≤ 0.20%, Manganese (Mn) ≤ 1.60%, Silicon (Si) ≤ 0.50%, Phosphorus (P) ≤ 0.025%, Sulfur (S) ≤ 0.010%

Alloying Elements: Contains nickel (Ni), chromium (Cr), molybdenum (Mo), etc.

Implementation Standard: GB/T24186-2022 "High-Strength Wear-Resistant Steel Plate"

This product complies with international standards such as ASTM, JIS, and DIN.

TEL: +86 17863557187
WhatsApp: +86 17863557187
E-mail: lilylcsteel@cnzlgt.com
PRODUCT DETAILS

Carbon Steel: Properties, Production, Examples and Applications

Carbon steel is an iron-carbon alloy, which contains up to 2.1 wt.% carbon. For carbon steels, there is no minimum specified content of other alloying elements, however, they often contain manganese. The maximum manganese, silicon and copper content should be less than 1.65 wt.%, 0.6 wt.% and 0.6 wt.%, respectively.


Types of carbon steel and their properties

Carbon steel can be classified into three categories according to its carbon content: low-carbon steel (or mild-carbon steel), medium-carbon steel and high-carbon steel . Their carbon content, microstructure and properties compare as follows:

Carbon content (wt.%)MicrostructurePropertiesExamples
Low-carbon steel< 0.25Ferrite, pearliteLow hardness and cost. High ductility, toughness, machinability and weldability
Medium-carbon steel0.25 – 0.60MartensiteLow hardenability, medium strength, ductility and toughness
High-carbon steel0.60 – 1.25PearliteHigh hardness, strength, low ductility


Grade:

1)GB: Q195, Q215, Q235A, Q235B, Q235C, Q235D, Q255A, 255B, Q275, Q295A, Q295B, Q345B, Q345C, Q345D, Q345E, Q390A, Q390B, Q390C,Q390D, Q390E, Q420, Q420B, Q420C, Q420D, Q420E, Q460D, Q460E, Q500D, Q500E, Q550D, Q550E, Q620D, Q620E, Q690D, Q690E

2)EN: S185,S235JR, S275JR, S355JR, S420NL, S460NL S500Q, S550Q, S620Q, S690Q

3)ASTM: Grade B, Grade C, Grade D, A36, Grade 36, Grade 40, Grade42, Grade 50, Grade 55, Grade 60, Grade 65, Grade 80

4)JIS: SS330, SPHC, SS400, SPFC, SPHD, SPHE


Product NamePrime Quality VRN400 VRN500 1200*2500mm AR500 Hard Wearing and Abrasion Resistant Steel Plate 10mm 14mm 16mm Wear Plate Price
GradeChina: NM360,NM400,NM450,NM500 etc
Germany: Xar400, Xar450, Xar500,Xar550, Xar600
Finland: RAEX400,RAEX450,RAEX500DIN: CREUSABRO48000 CREUSABRO8000
Surfacenatural color coated galvanized or customized
StandardDIN GB  JIS BA AISI ASTM EN etc
CertificateMTC SGS
Techniquehot rolled or cold rolled
Thickness3-200mm or as required
Width1500-2000mm or as required
Length6000-12000mm or as required
ApplicationThis kind of steel has a good resistance to abrasion, so it is widely used in engineering machinery, metallurgical machinery, coal industry, mining machinery,environmental protection machinery,the feeder,container,dumper bodies, sieve plate,hoister,edge plate,wheel gear,cutter etc other industry.
MOQ5 Metric tons
Delivery timeWithin 7-15 workdays after receiving deposit or L/C
Export packingSteel strips package or seaworthy packing
Capacity250,000 tons/year
PaymentT/T L/C, Western Union
Should have any questions, please contact me .I will do my best to help you.
Steel/GradeCSiMnPSAlCr+Ni+MoNb+V+Ti
NM360/AR3600.10-0.300.20-0.401.00-2.00≤0.0015≤0.003≥0.20＜0.6Trance Amount
NM400/AR4000.10-0.400.20-0.401.00-2.00≤0.0015≤0.003≥0.20＜0.9
NM450/AR4500.10-0.400.20-0.401.00-2.00≤0.0015≤0.003≥0.20＜1.2
NM500/AR5000.10-0.400.20-0.451.00-2.00≤0.0015≤0.003≥0.20＜1.5
NM550/AR5500.10-0.500.20-0.451.00-1.50≤0.0015≤0.003≥0.20＜2.0
NM600/AR6000.10-0.500.20-0.451.00-1.50≤0.0015≤0.003≥0.20＜2.5
Steel/GradeCSiMnPSAlCr+Ni+MoNb+V+Ti
NM360/AR3600.10-0.300.20-0.401.00-2.00≤0.0015≤0.003≥0.20＜0.6Trance Amount
NM400/AR4000.10-0.400.20-0.401.00-2.00≤0.0015≤0.003≥0.20＜0.9
NM450/AR4500.10-0.400.20-0.401.00-2.00≤0.0015≤0.003≥0.20＜1.2
NM500/AR5000.10-0.400.20-0.451.00-2.00≤0.0015≤0.003≥0.20＜1.5
NM550/AR5500.10-0.500.20-0.451.00-1.50≤0.0015≤0.003≥0.20＜2.0
NM600/AR6000.10-0.500.20-0.451.00-1.50≤0.0015≤0.003≥0.20＜2.5
